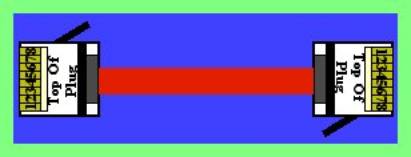

RJ-45 Wiring Diagram

Straight-Through

1 --- White W/Orange Stripe --- 1

2 --- Orange ---------------------- 2

3 --- White W/Green Stripe ---- 3

4 --- Blue -------------------------- 4

5 --- White W/Blue Stripe -------5

6 --- Green ------------------------ 6

7 --- White W/Brown Stripe ----7

8 --- Brown ------------------------8

Crossed-Cable

1 --- White W/Orange Stripe --- 3

2 --- Orange ---------------------- 6

3 --- White W/Green Stripe ---- 1

4 --- Blue -------------------------- 4

5 --- White W/Blue Stripe -------5

6 --- Green ------------------------ 2

7 --- White W/Brown Stripe ----7

8 --- Brown ------------------------8
